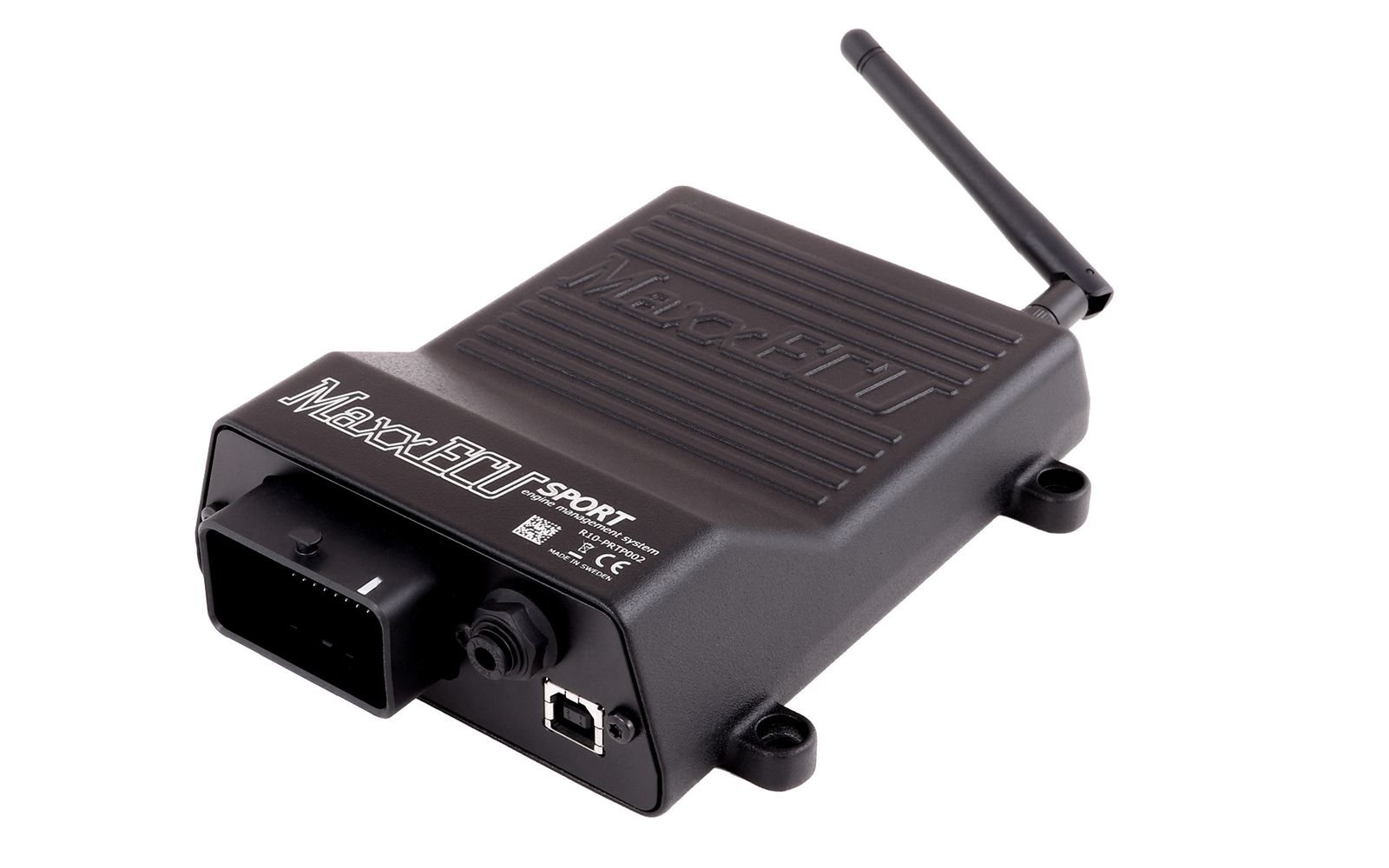

MaxxECU Sport

Description

The MaxxECU Sport is an advanced, high-performance engine control unit designed for engines with up to 6 sequential cylinders (or up to 12 cylinders in wasted spark). It is a versatile solution for both professional racers and street enthusiasts looking for precise engine management without the need for external modules.
​Key Technical Specifications
​Processor: Superfast ARM Cortex-M3 120MHz main processor for rapid calculations.
​Sequential Control: Supports up to 6 cylinders fully sequentially.
​Built-in MAP-Sensor: Integrated 400kPa sensor supporting up to 3.0 bar (43.5 psi) of boost.
​Onboard Wideband Lambda: Direct support for Bosch LSU 4.2 and 4.9 sensors (no external electronics required).
​E-Throttle Support: Dedicated outputs for Electronic Throttle control.
​Connectivity: High-speed USB for MTune software and built-in Bluetooth for the MDash Android app.
​Internal Data Logging: 8MB internal memory with a logging rate of up to 1000Hz.
​Inputs & Outputs
​Outputs: * 6x Injector outputs (High/Low impedance).
​6x Ignition outputs (5V signal).
​7x Extra GPO (Ground) outputs for fuel pumps, fans, or boost control.
​2x Extra motor outputs (specifically for E-Throttle).
​Inputs:
​Dedicated IAT, CLT, and TPS inputs.
​2x Trigger inputs (VR or Hall) with automatic level detection.
​6x Extra 0-5V analog inputs (for oil/fuel pressure, etc.).
​2x Extra temperature inputs and 2x digital inputs.
​CAN bus for expansion modules and OEM vehicle integration.
